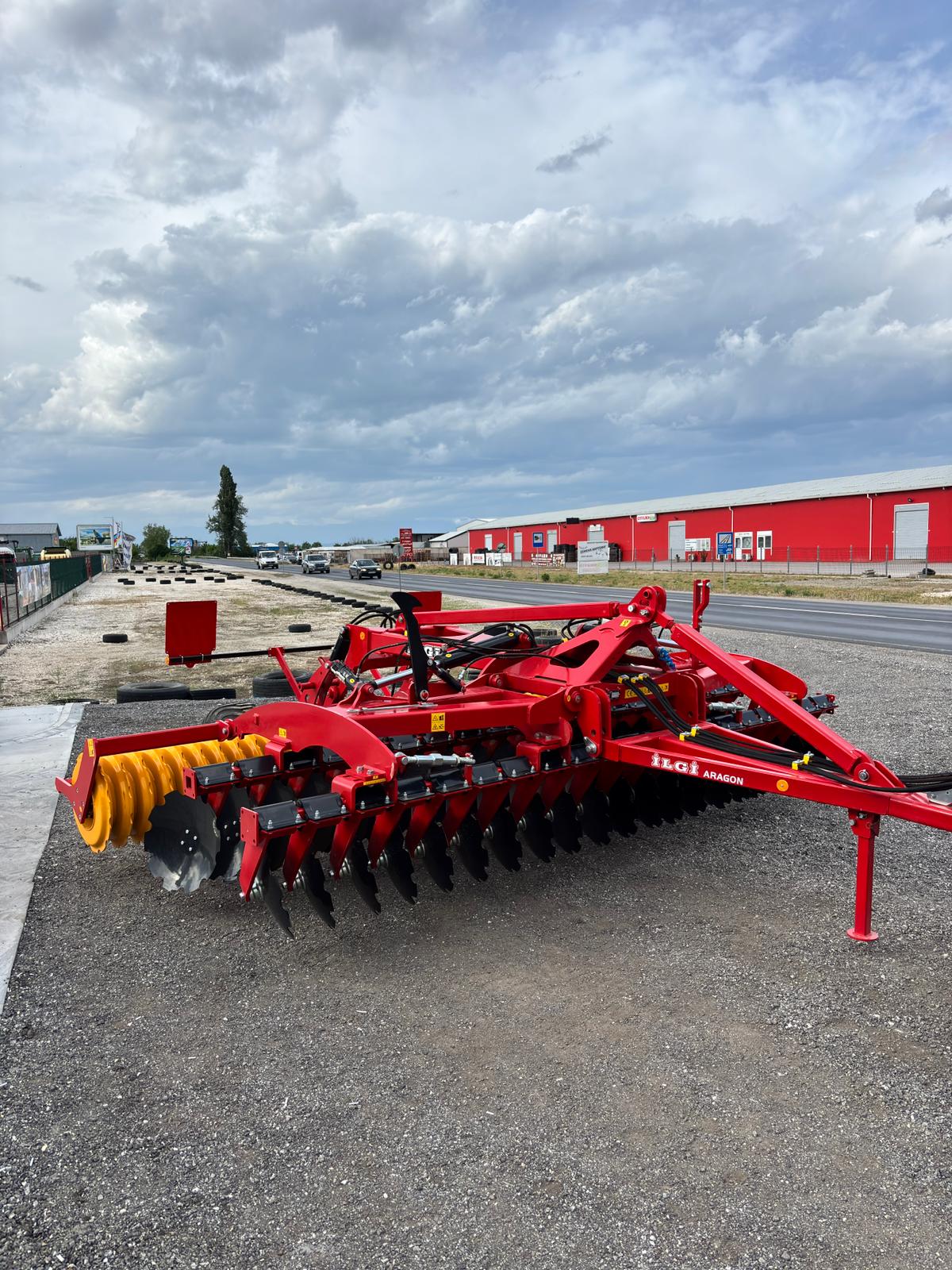

The ARAGON-K is a high-performance trailed compact disc harrow designed for intensive stubble cultivation, secondary soil tillage, and high-quality seedbed preparation. Its robust construction, optimized disc arrangement, and wide working widths provide efficient cultivation of large areas with a minimum number of field passes.
The trailed design allows the machine to be easily matched with tractors of different power levels while providing excellent stability during operation. The independent disc system ensures uniform soil penetration, effective soil crumbling, and thorough incorporation of crop residues.
The ARAGON-K can be equipped with standard Ø510 mm discs, while Ø560 mm discs are available as an option for more intensive cultivation in heavy soil conditions. Depending on farm requirements, different rear rollers can be selected, including tubular, spring, or disc rollers.
The series includes four trailed models with working widths from 4.00 to 6.00 m, designed for professional farming operations and high-capacity field work.
Technical Specifications
Heavy-duty construction for intensive field operation
Independent disc system
Excellent soil crumbling and mixing
Efficient incorporation of crop residues
Uniform cultivation across the entire working width
Choice of different rear rollers
Ø560 mm discs available as an option for more intensive cultivation
Trailed design for stable operation and easy tractor matching
Suitable for medium and heavy soils
High field capacity for large-scale farming
Key Advantages
High field productivity
Efficient stubble cultivation
Excellent soil crumbling
Uniform incorporation of crop residues
High-quality seedbed preparation
Reduced fuel consumption per hectare
Fewer field passes
Robust construction and long service life
Easy transport thanks to the trailed design
ARAGON-K 400
Number of discs: 32
Working width: 4.00 m
Transport width: 2.80 m
Recommended power: 140–180 HP
Weight with tube roller: 2524 kg (Mounted type)
Weight with heavy-duty roller: 3180 kg (Mounted type)
Weight with tube roller: 3588 kg (Trailed type)
Weight with heavy-duty roller: 4244 kg (Trailed type)
ARAGON-K 450
Number of discs: 36
Working width: 4.50 m
Transport width: 2.80 m
Recommended power: 160–190 HP
Weight with tube roller: 2665 kg (Mounted type)
Weight with heavy-duty roller: 3367 kg (Mounted type)
Weight with tube roller: 3729 kg (Trailed type)
Weight with heavy-duty roller: 4430 kg (Trailed type)
ARAGON-K 500
Number of discs: 40
Working width: 5.00 m
Transport width: 2.80 m
Recommended power: 170–210 HP
Weight with tube roller: 2810 kg (Mounted type)
Weight with heavy-duty roller: 3555 kg (Mounted type)
Weight with tube roller: 3873 kg (Trailed type)
Weight with heavy-duty roller: 4620 kg (Trailed type)
ARAGON-K 600
Number of discs: 48
Working width: 6.00 m
Transport width: 2.80 m
Recommended power: 190–250 HP
Weight with tube roller: 3158 kg (Mounted type)
Weight with heavy-duty roller: 3982 kg (Mounted type)
Weight with tube roller: 4222 kg (Trailed type)
Weight with heavy-duty roller: 5046 kg (Trailed type)
Suitable For
Stubble cultivation
Secondary soil tillage
Pre-sowing soil preparation
Crop residue shredding and incorporation
Seedbed preparation
Wheat
Corn
Sunflower
Rapeseed
Other field crops
